Petrel Sport SG - An Expedition worthy stitch and glue sea kayak

The Petrel Sport SG is a 16' x 21" stitch and glue expedition kayak engineered for dynamic water conditions. Its extended waterline and compact footprint deliver responsive speed without sacrificing maneuverability, while substantial rocker enables quick directional changes. The transitional chine design—double forward, single aft—grants precise edging control for aggressive turning. A spacious cockpit accommodates larger paddlers and optimizes lower-body positioning for powerful strokes. Excellent stability inspires confidence in rough conditions, and generous cargo volume supports extended expeditions or casual day trips. Plans include options for flush wooden or rubber hatches, complete with construction specifications, hatch installation protocols, bulkhead patterns, and detailed assembly guidance for both coaming and hardware integration.

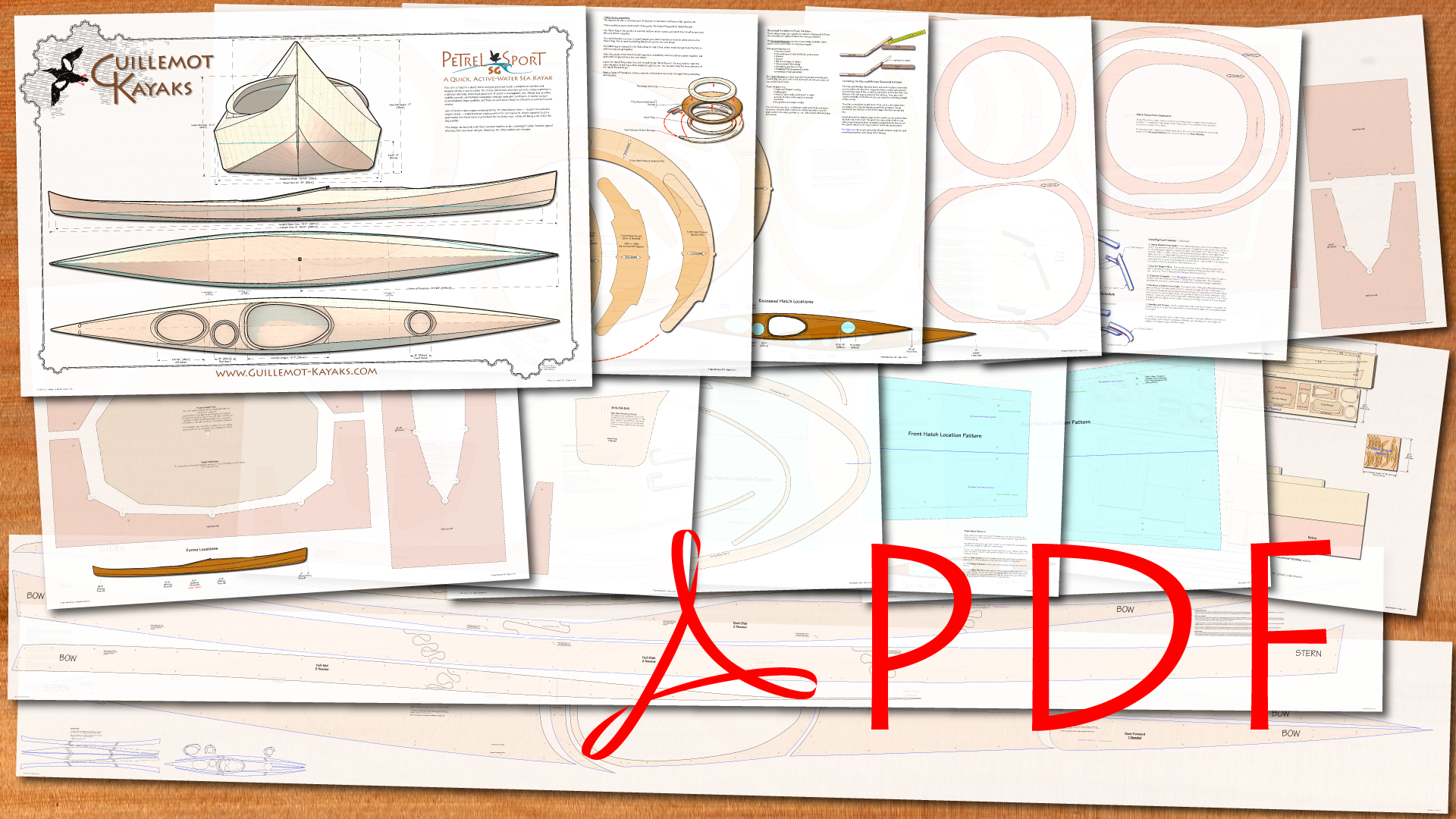

INCLUDED IN THE PLANS:

Twelve  24" x 36" [61cm x 91cm] Drawing Pages Plus two 24" x 156" including: An overall drawing, a full size "stacked" form drawing showing all the forms and then all the forms drawn individually and at full size, Patterns for both recessed and flush hatches, Bulkhead patterns,  and extensive annotation to guide you through building this sea kayak plan.

Included in the PDF Manual:

• Building The Petrel Play SG: This instruction manual written by Nick Schade guides you step by step through this build process. Currently the Manual is for the Petrel Play, but the process is largely identical.

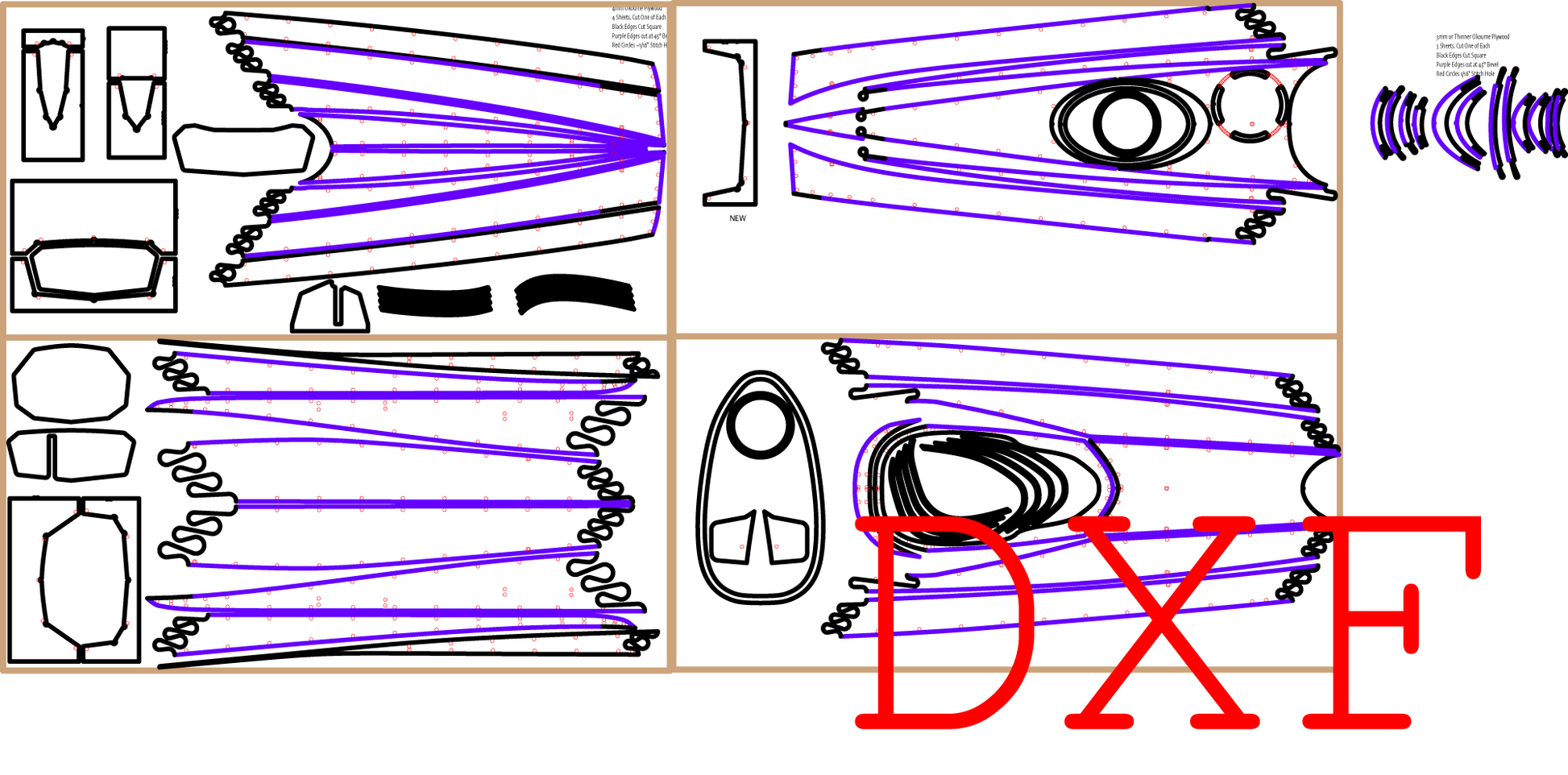

Included in the CNC/DXF File:

• Tool Paths to Cut 4mm Plywood Parts: Cut your own Kit. Set up with puzzle joints to fit on 3 sheets of standard sized 4mm Okoume plywood, the hatch recesses should be cut from 3mm or thinner. No Instructions Included

NOTE: These plans include a license to build one kayak. If you would like to build more than one, please contact Nick for details.
