Petrel SG - Stitch and Glue Performance Sea Kayak - Downloadable Plans and CNC files

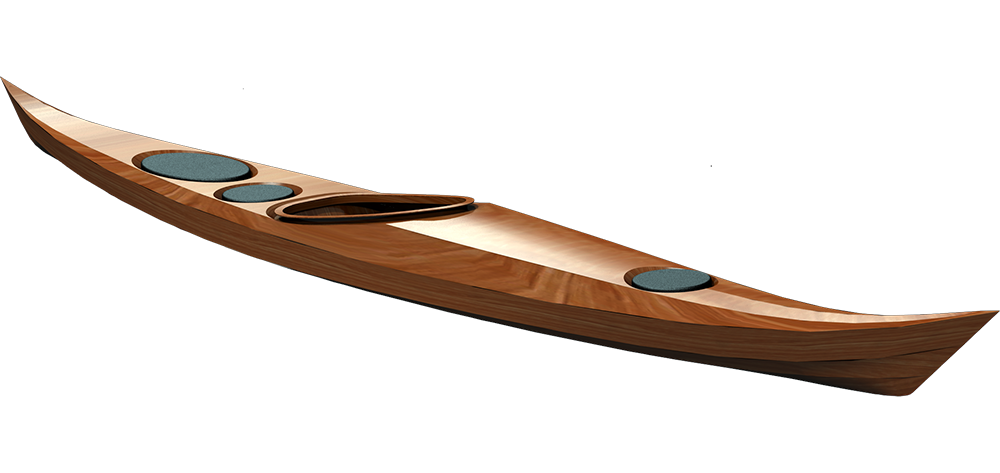

The Petrel SG kayak is a versatile and high-performing sea kayak that boasts modern features including waterproof rubber hatches and a day hatch, recessed to minimize spray and aid in rescue efforts. Separated by a sloped bulkhead, the day hatch allows for easy removal of water from the cockpit. Additionally, the kayak can be equipped with a reliable and efficient retractable skeg, positioned off-center to prevent jamming.

Designed with a transitioning chine, the bow has a soft front and a hard back, achieved through a 3-panel per side bow and a 2-panel per side stern. This allows for excellent control while surfing and softer landings on waves. Though the S&G Petrel may be more challenging to build, its complex design results in superior performance on the water.

Compared to the strip version, the S&G Petrel is a quicker and easier build, making it an ideal long-distance touring kayak for smaller paddlers or a day/overnight option for

Nick has produced a full video series providing in-depth instructions for the complete build of the Petrel Play. The Petrel goes together the same. You can watch the Playlist on YouTube.

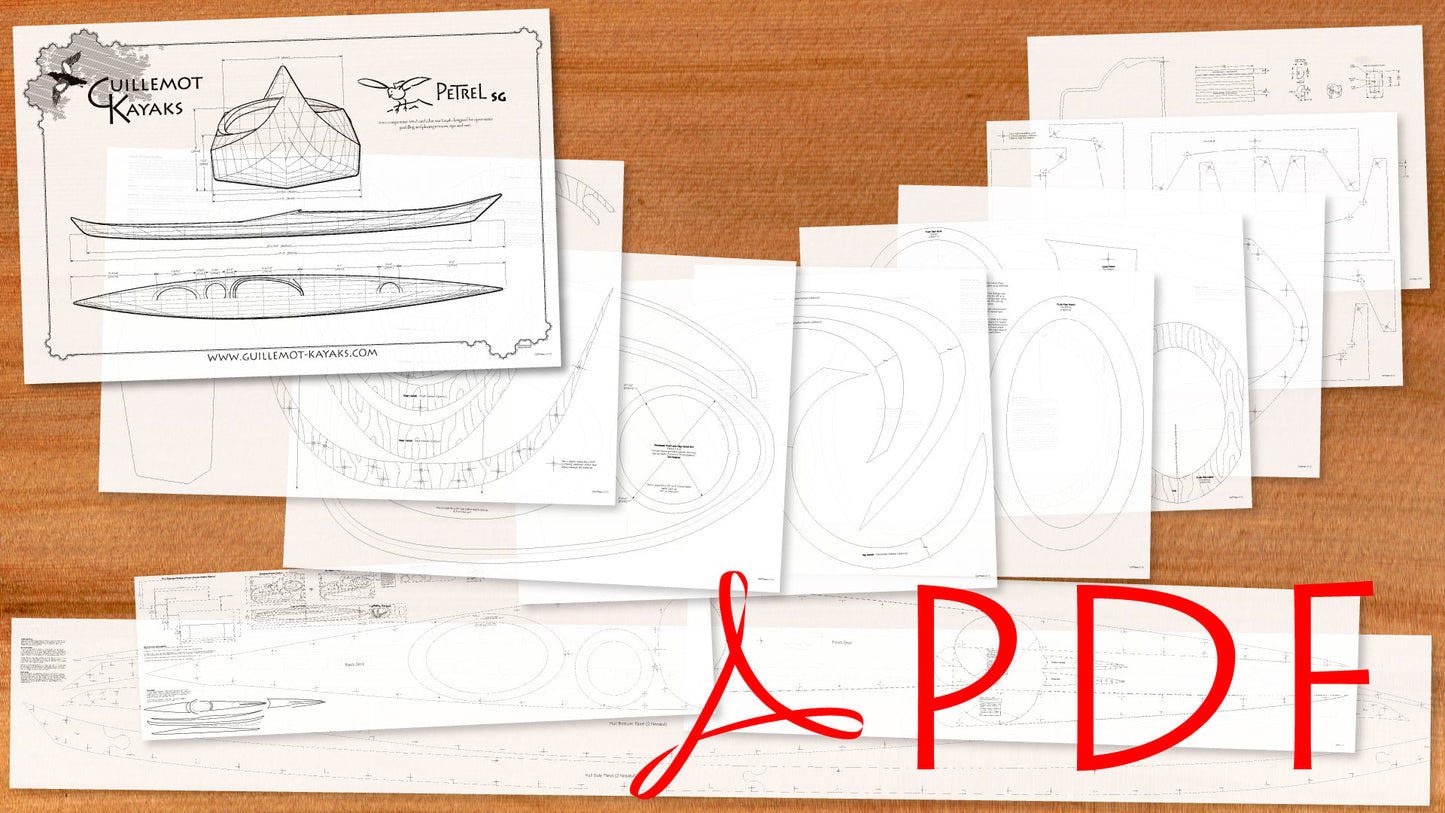

Included in the PDF Plans:

• Eight 24" x 36" [61cm x 91cm] Drawing Pages plus 3 Full Length Panel Patterns including: An overall drawing, patterns for recessed hatches and cockpit, and forms. The long panels assume you will pre-scarf long pieces of plywood and then trace the full size patterns on to those long blanks.

Included in the PDF Manual:

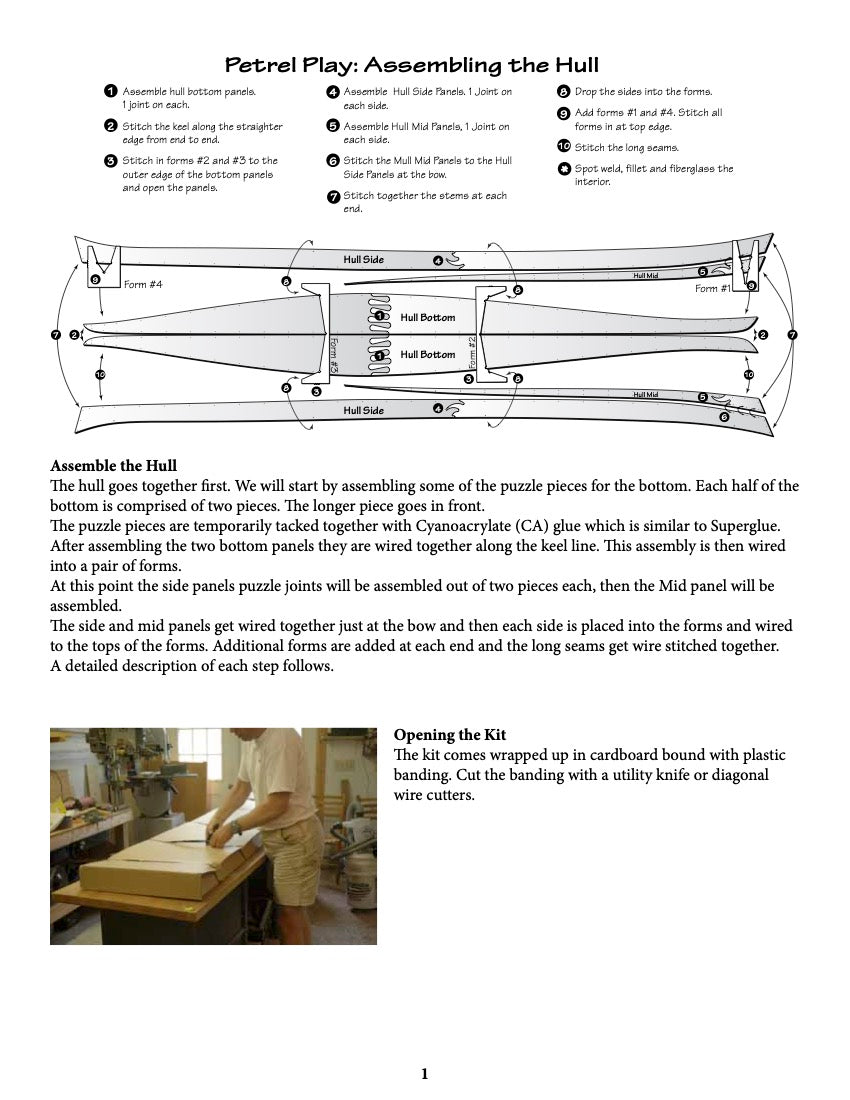

• Building The Petrel Play SG: This instruction manual written by Nick Schade guides you step by step through this build process.

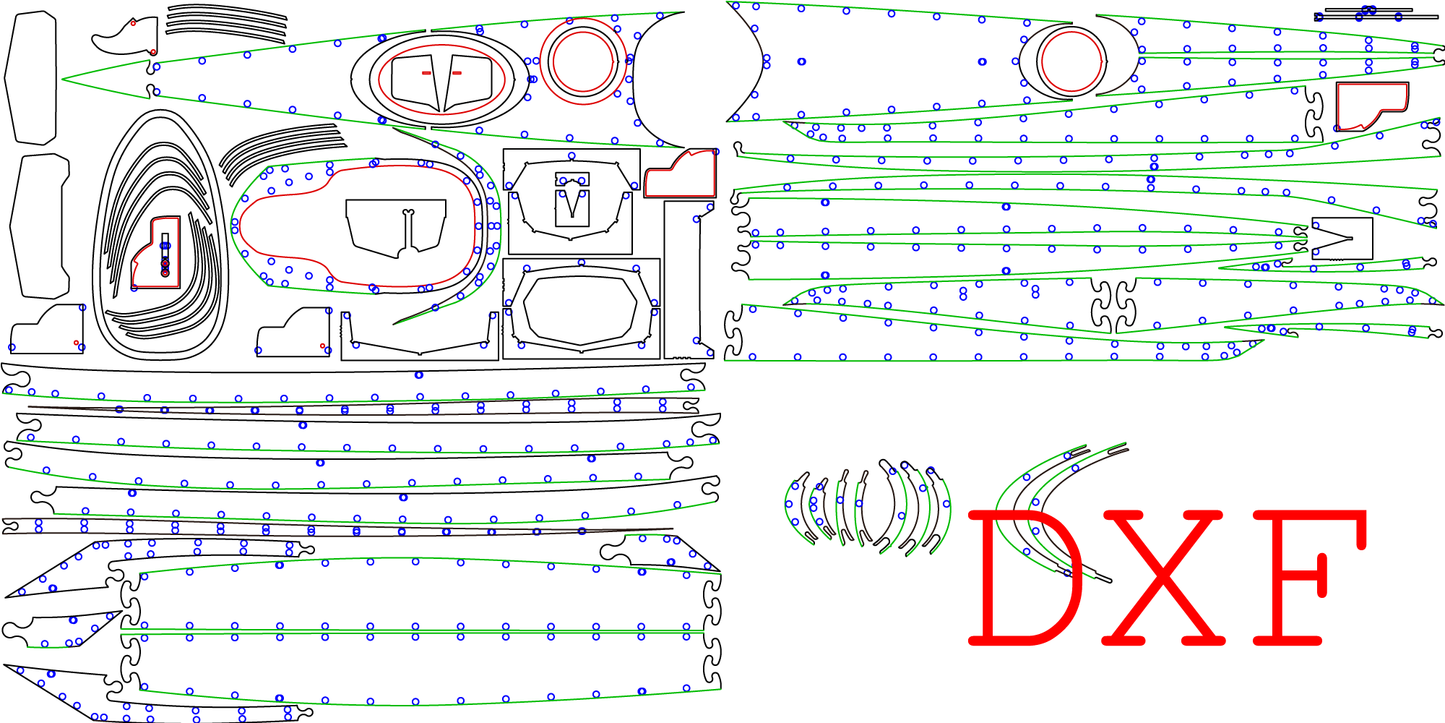

Included in the CNC/DXF File:

• Tool Paths to Cut 4mm Plywood Parts: Cut your own Kit. Set up with puzzle joints to fit on 3 sheets of standard sized 4mm Okoume plywood, the hatch recesses should be cut from 3mm or thinner. No Instructions Included

NOTE: These plans include a license to build one kayak. If you would like to build more than one, please contact Nick for details.

BUY A PETREL SG KIT FROM CHESAPEAKE LIGHT CRAFT
