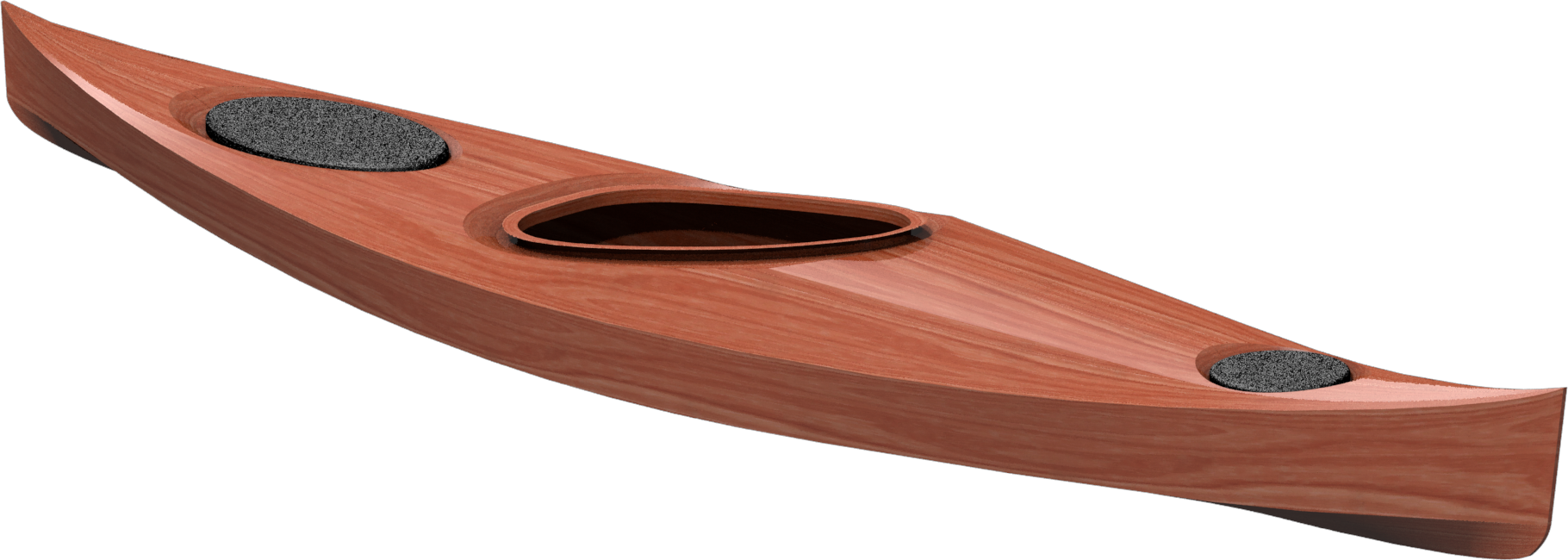

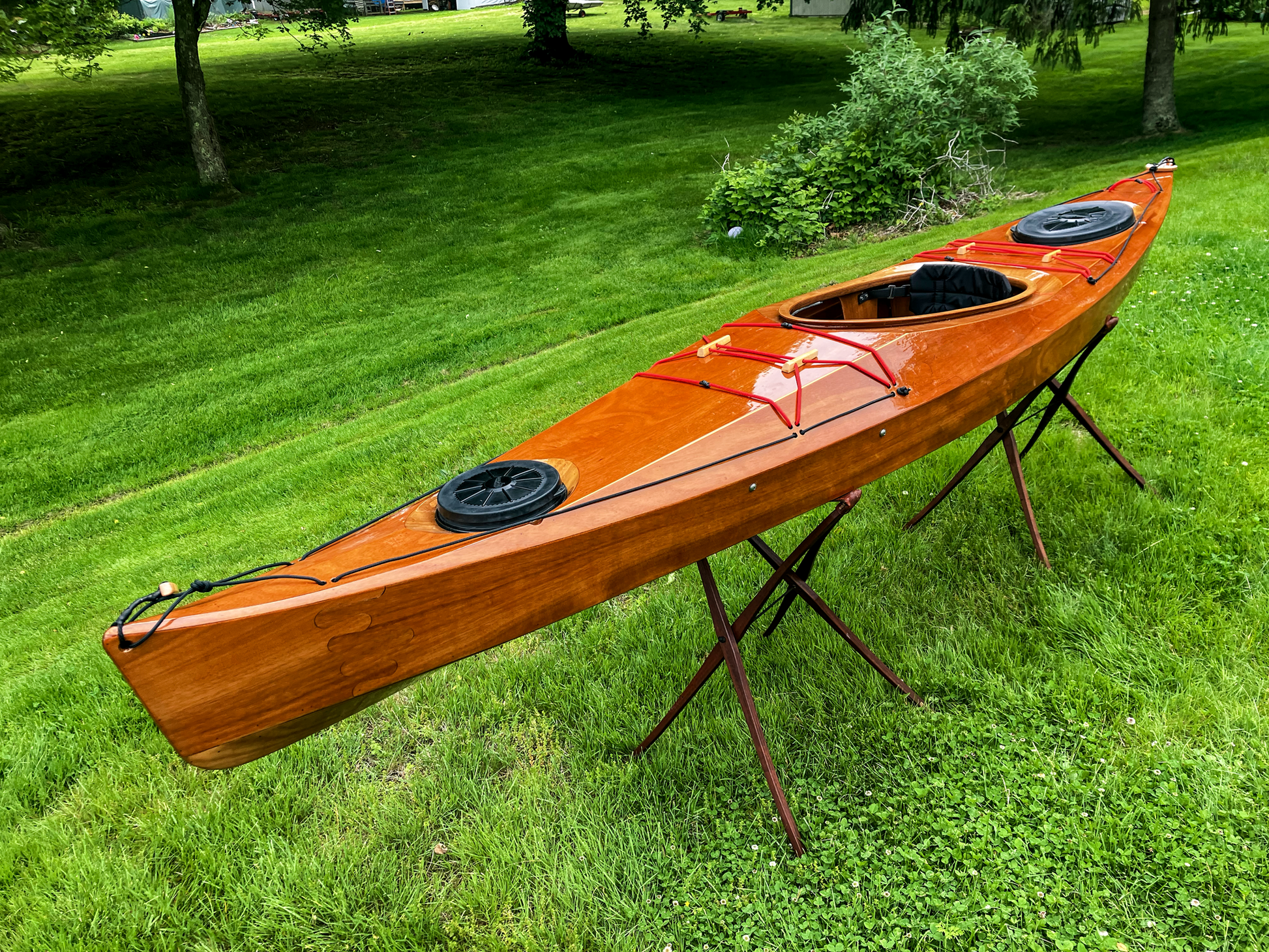

This 12' x 26"" [3.7m x 6cm] stitch and glue plywood kayak is responsive and stable recreational kayak. Equipped with waterproof hatches and bulkheads it incorporates the safety features of a full sea kayak in a small, easy to handle package. With a 280 lbs [130 kg] capacity it suitable for large adults but is not too big for children. The standard sea kayak sized cockpit can be fitted with a sprayskirt for those venturing into rougher conditions.
This design can be built with flush wooden hatches or the watertight rubber hatches typical of production sea kayak designs. Drawings for either option are included.
Included in the PDF Plans:
Thirteen 24" x 36" [61cm x 91cm] Drawing Pages Plus two 24" x 156" Full Length Patterns including: An overall drawing, patterns for both flush and recessed hatches and cockpit, and forms. The long panels assume you will pre-scarf long pieces of plywood and then trace the full size patterns on to those long blanks. Be sure you have the ability to print these plans before your purchase.
Included in the PDF Manual:
Building The Petrel Play SG: This instruction manual written by Nick Schade guides you step by step through this build process. Currently the Manual is for the Petrel Play, but the process is largely identical.
Included in the CNC/DXF File:

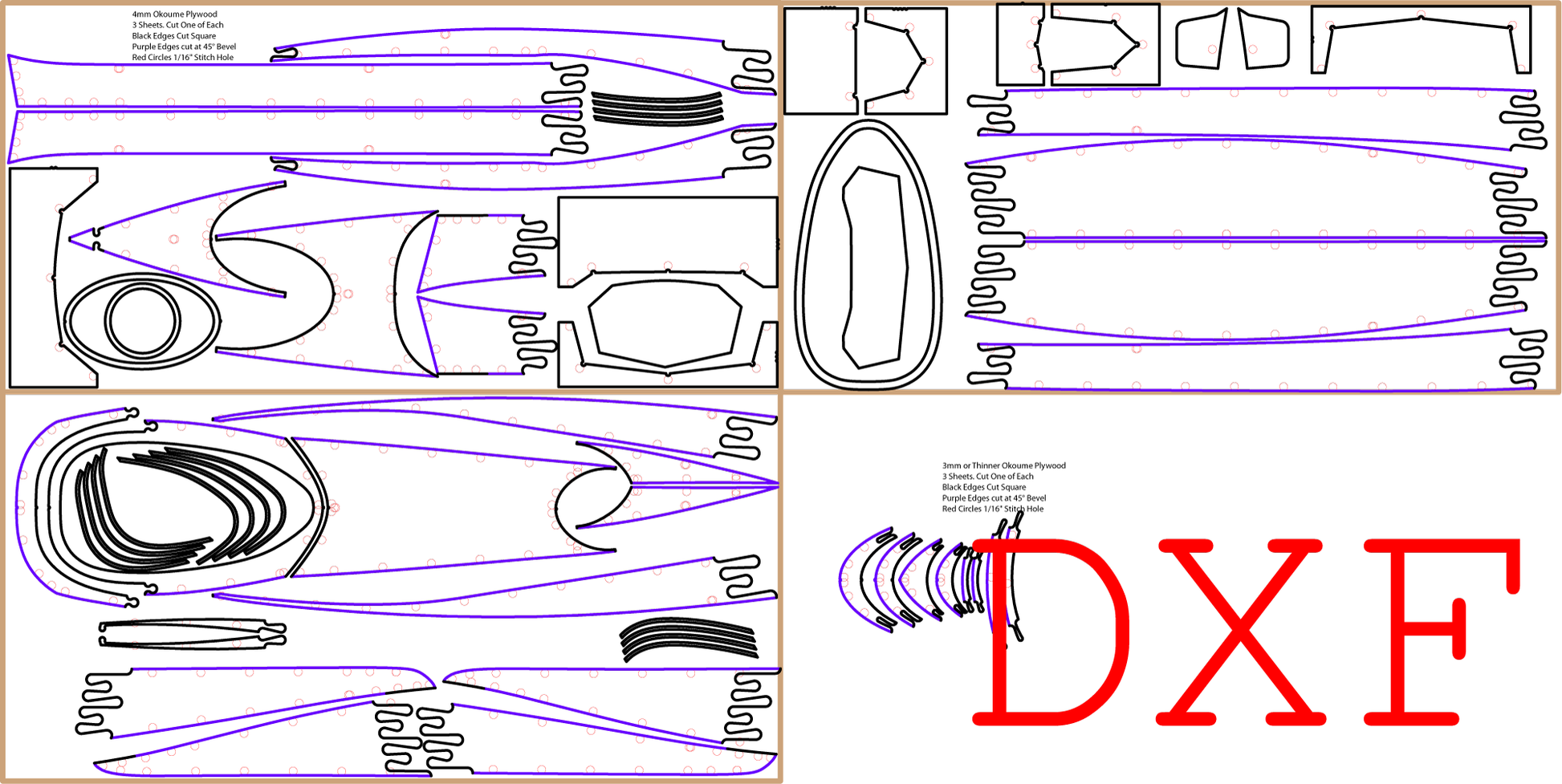

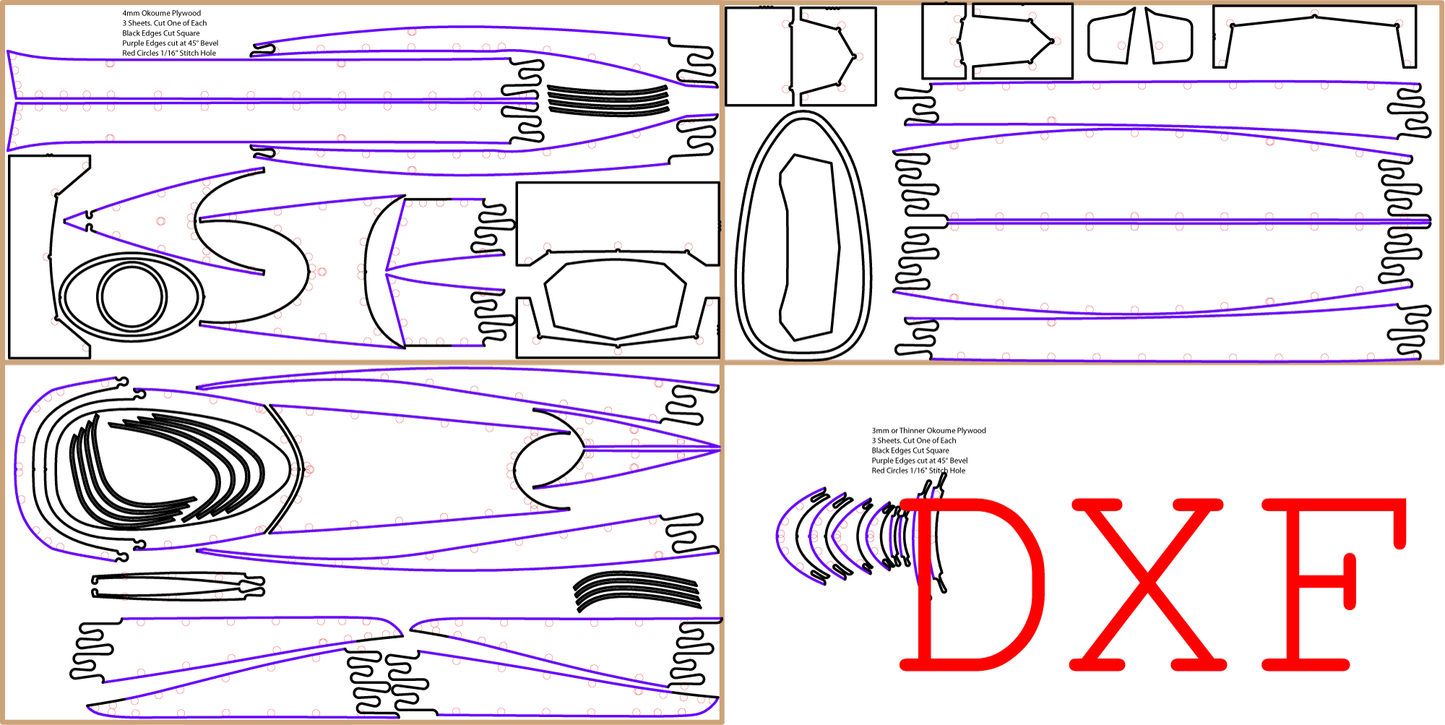

Tool Paths to Cut 4mm Plywood Parts: Cut your own Kit. Set up with puzzle joints to fit on 3 sheets of standard sized 4mm Okoume plywood, the hatch recesses should be cut from 3mm or thinner. No Instructions Included
NOTE: These plans include a license to build one kayak. If you would like to build more than one, please contact Nick for details.
NOTE: Unless otherwise noted, our boat plans include the license to build one boat. If you would like to build more than one or want to build our designs commercially, please contact us for more information.
Printing Full Sized Boat Plans
Note: Our PDF boat plans include full-sized drawings of the parts and forms needed to build the boat, as such they are best printed on a large format printer.
If you do not have access to a large format printer, visit Guillemot-Kayaks.comwhere we sell full-size hard copy of all these plans printed and ready to use. You may also try printing these by "tiling" using your own printer and taping together the large pages.
